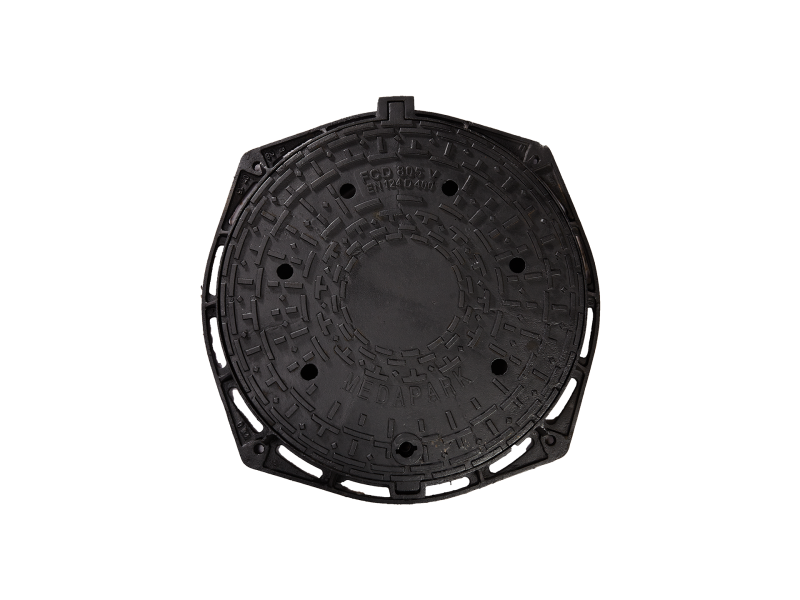

VENTILATED MANHOLE COVER D400 805*97 WITH LOCK

VENTILATED MANHOLE COVER D400 805*97 WITH LOCK

  • Product code: FCD805VINCH

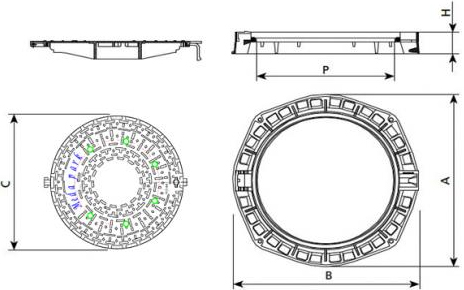

DIMENSIONS

CodeClassClosingGasketNr.of orificesΦ orifices

ΦA

Ext.diam.

Φ C

Cover diam.

Φ P clear opening

Height

 Weight KG
FCD805VINCH 40 t YES YES 6 26 805 "Φ 620 Φ 600 97

Specifications

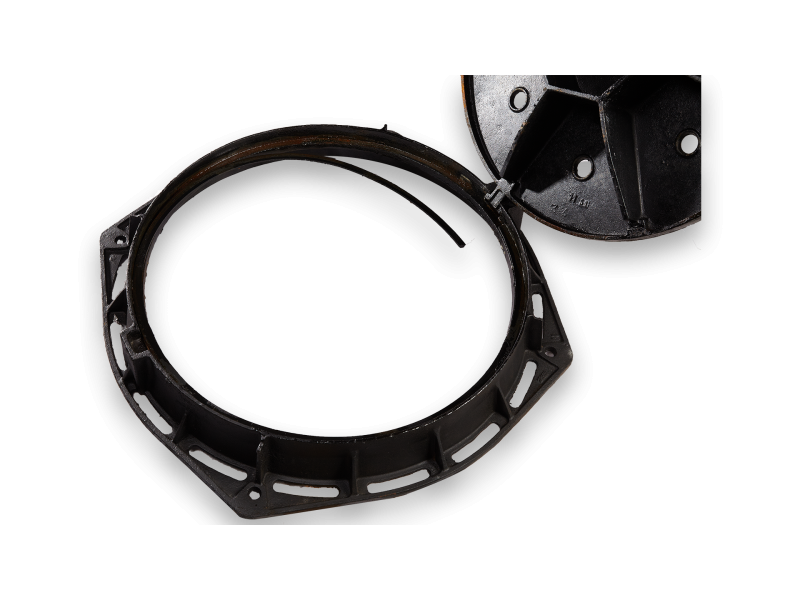

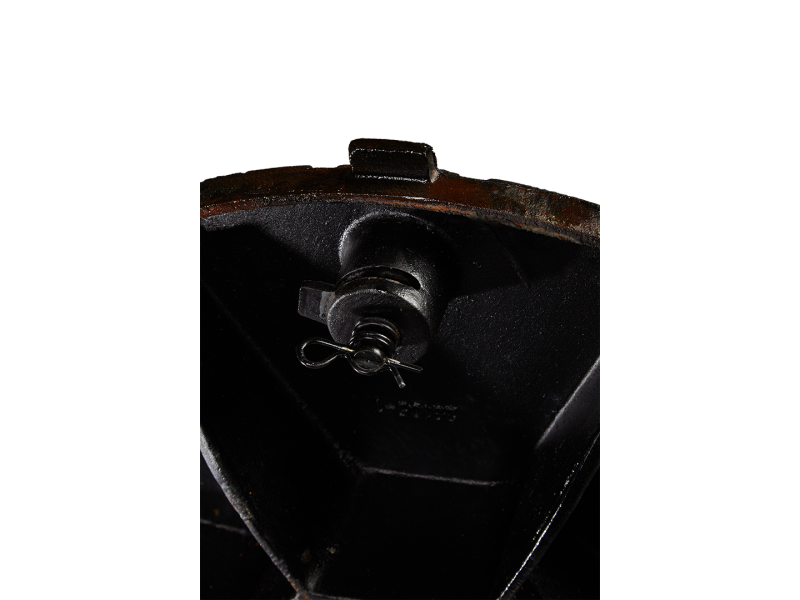

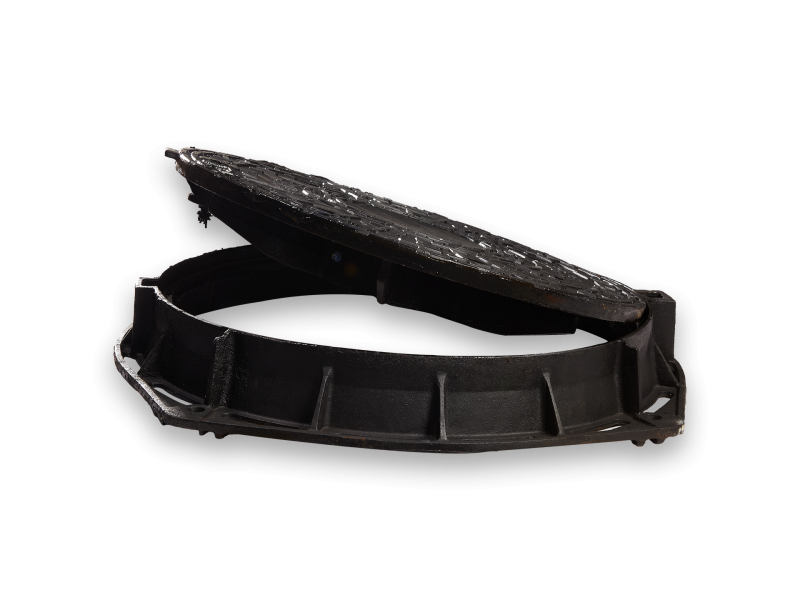

  • Type - round hinged iron manhole cover, locking system, fasteners, gasket,ventilated.Frame equipped with a soundproof rubber gasket.
  • Class- D400 minimum 40 tons resistance according to EN 124-1993 .
  • Material - nodular cast iron EN GJS 400-15 to ISO 1083 EN 1563 / A1 .
  • Site of use - access roads and traffic, stabilized shoulders and space stationary road vehicles, heavy traffic .
  • Applications - distribution channels, drainage networks, pumping and water treatment stations .
  • Products contained in the Technical Agreement 003-05 / 238-2013 .
  • Pret:

    299.90 lei

    450.99 lei
